The M3000LC is Boyd’s most popular orthodontic and pediatric dental patient Exam & Treatment Chair, combining affordability, function, and a wide variety of practical features. Unique to the MC3000LC is the vertical lift column base with 8” vertical lift, allowing the height to be adjusted for maximum ergonomic positioning.
Standard Features:
- All-steel frame construction
- Ergonomically designed winged back
- Low-voltage DC motor actuators
- Motorized vertical lift base - 8"
- Contoured one-piece seat
- Integrated full function foot control
- Three (3) operator designated pre-set positions
- Auto “return to home” switch
- Snap-on/Snap-off upholstery
- Replaceable, clear plastic foot protector cover
- Choice of standard FH headrests
Options:
- Lever-release Armrest
- Swivel base (41.5 degree rotation from center)
- Articulating headrest
- Upgrade to premium upholstery
| Model # | Part # | Description |
|---|---|---|
| M3000LC | 100-3004 | Power Back, Lift Column, Putty |
| M3000LC | 100-3004B | Power Back, Lift Column, Black |
WARNING: This product can expose you to chemicals including cumene, nickel
compounds and wood dust, which are known to the state of California to cause cancer;
di(2-ethylhexyl)phthalate, which is known to the state of California to cause cancer,
developmental
toxicity and male reproductive toxicity; and lead and lead compounds, which are known to the
state
of California to cause cancer, developmental toxicity, male reproductive toxicity, and female
reproductive toxicity. For more information, go to www.P65Warnings.ca.gov.
Options
| Model # | Part # | Description |
|---|---|---|
| Custom Upholstery Embroidery | 56-9000 | Add your own unique brand or design to the toe section of your treatment chair. (Vinyl Upholstery only) |
| Arm Assembly | 68-2200 | 300X/M3000/M3010 Series, Vinyl, Std Foam, Putty [Pair] |
| Arm Assembly | 68-2200B | 300X/M3000/M3010 Series, Vinyl, Std Foam, Black [Pair] |
| Arm Assembly | 68-2200BUL | 300X/M3000/M3010 Series, UL Pro, Std Foam, Black [Pair] |
| Arm Assembly | 68-2200UL | 300X/M3000/M3010 Series, UL Pro, Std Foam, Putty [Pair] |
| Swivel Base | 95-0532 | Swivel, M - and E- Series Patient Chairs, Putty |
| Swivel Base | 95-0532B | Swivel, M - and E- Series Patient Chairs, Black |
| SPECIFICATIONS & FEATURES | M300X | M3000FB | M3000LC | M3010FB | M3010LC | E530 | E535 | PB4000 | PB4001 | ||
| ● STANDARD FEATURE ●● OPTIONAL FEATURE | |||||||||||
| Weight Capacity (lbs) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 350 | 350 | 350 | 350 |

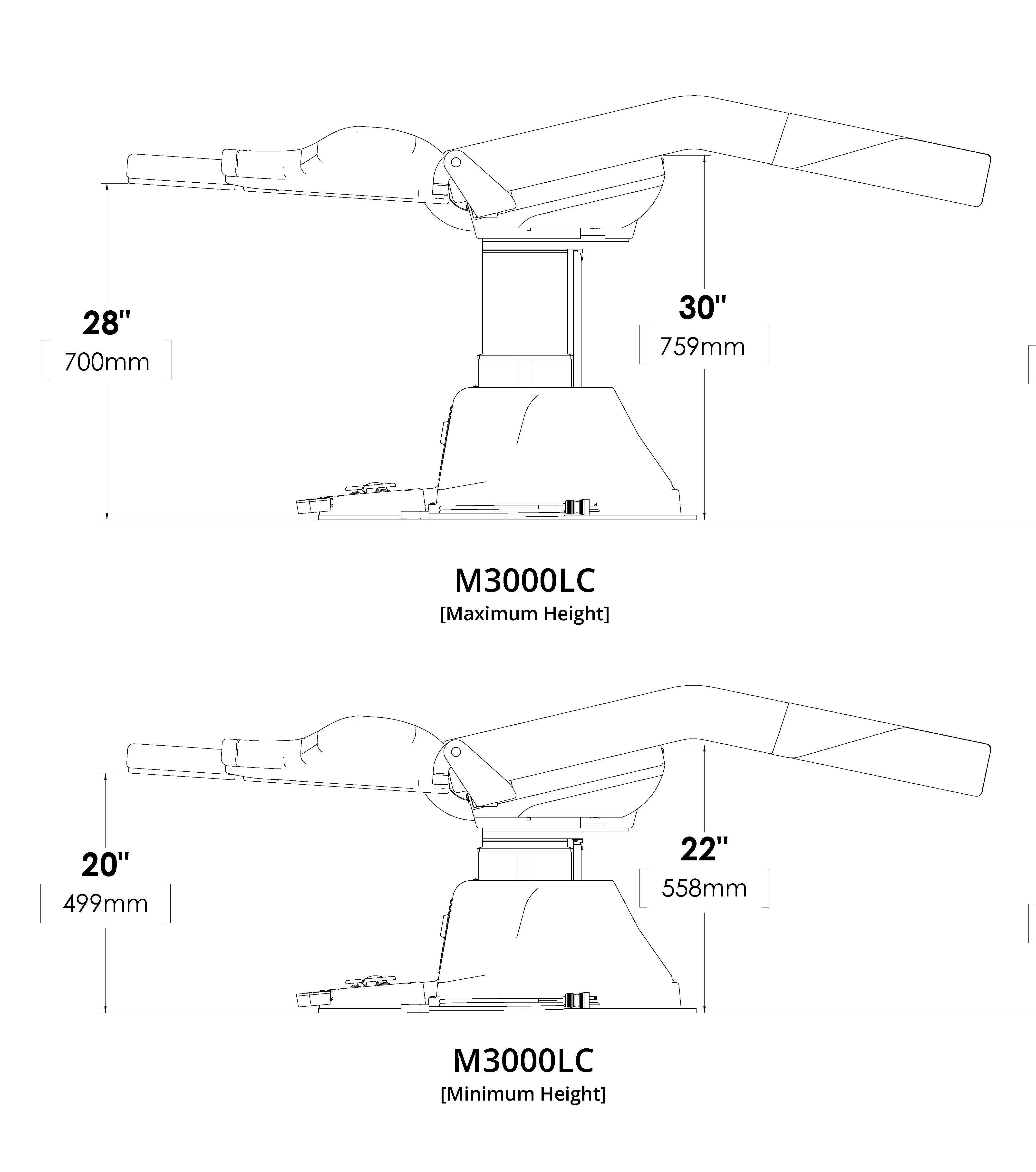

| Minimum Seat Height (At the highest point of seat frame) | 25.5" | 25.5" | 22" | 19.5" | 25.5" | 22" | 19.5" | 19" | 19" | 27.5" | 27.5" |
| Maximum Seat Height (At the highest point of seat frame) | 25.5" | 25.5" | 30" | 33" | 27.5" | 30" | 33" | 26" | 26" | 27.5" | 27.5" |
| Base Plate Width | 24.25" | 24.25" | 24.25" | 24.25" | 24.25" | 24.25" | 24.25" | 20" | 20" | 26" | 26" |
| Length | 70.5" | 70.5" | 70.5" | 71.5" | 63.5" | 63.5" | 66.75" | 58" | 58" | 76.5" | 76.5" |
| Power Requirements (Amps) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 8 | |||
| # of Motorized Functions | 1 | 1 | 2 | 2 | 1 | 2 | 2 | 1 | |||
| 220vAC Convertible | ● | ● | ● | ● | ● | ●● | ●● | ||||
| Steel Frame Construction | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Frame/Trim Colors (Putty or Black) | ● | ● | ● | ● | ● | ● | ● | ● | Black Only | ● | ● |
| Headrest - Non Articulating | ● | ● | ● | ● | ● | ● | ● | ●● | ●● | ●● | ●● |
| Headrest - Single Articulating | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ● | ● |
| Headrest - Dual Articulating | ● | ● | |||||||||
| Choice of Standard Headrests | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Arm Rests | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ● | ● | N/A | N/A |
| Programmable Foot Control | ● | ● | ● | ● | ● | ||||||
| Programmable Foot Control - Detachable | ●● | ●● | |||||||||
| Programmable Hand Control on Chair Back | ● | ● | |||||||||
| Auto Return to Home | ● | ● | ● | ● | ● | ● | ● | ||||
| Safety Stop Feature | ● | ● | ● | ● | ● | ● | ● | ||||
| 120vAC Electrical Outlet | ● | ● | ● | ● | ● | ● | ● | ●● | ●● | ||
| Base - Cantilever Style (14" Stroke) | ● | ● | |||||||||
| Base - Vertical Column (7.9" Stroke) | ● | ● | ● | ||||||||
| Base - Manual Pump (7" Stroke) | ● | ||||||||||
| Base - Electric Hydraulic (7.5" Stroke) | ● | ||||||||||
| Seat Swivel (360 of Travel) | ● | ● | |||||||||
| Seat Swivel (83 of Travel) | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ||||
| Upholstery - Boltaflex Vinyl /Standard Foam | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Upholstery - Ultraleather Pro™ | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ||
| Upholstery - Choice of Stitching Styles | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Upholstery - Detachable | ● | ● | ● | ● | ● | ● | ● | ||||
| Memory Foam | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ||
