Boyd’s Pedo Benches provide an alternative to chairs for treating children. Our benches are adaptable platforms that can be easily modified to meet your specific requirements. Bench tops on both models articulate at the mid-section to make the patient more comfortable and aids in proper positioning. Both models come with a single articulating headrest, foot protector, full extension soft-close drawers with under mount glides and under toe compartment for additional storage.
Standard Features
- One-piece seat with articulating back
- Extendable articulating headrest
- Foot protector
- Integrated drawer storage with four (4) medium drawers
- Utility access panel

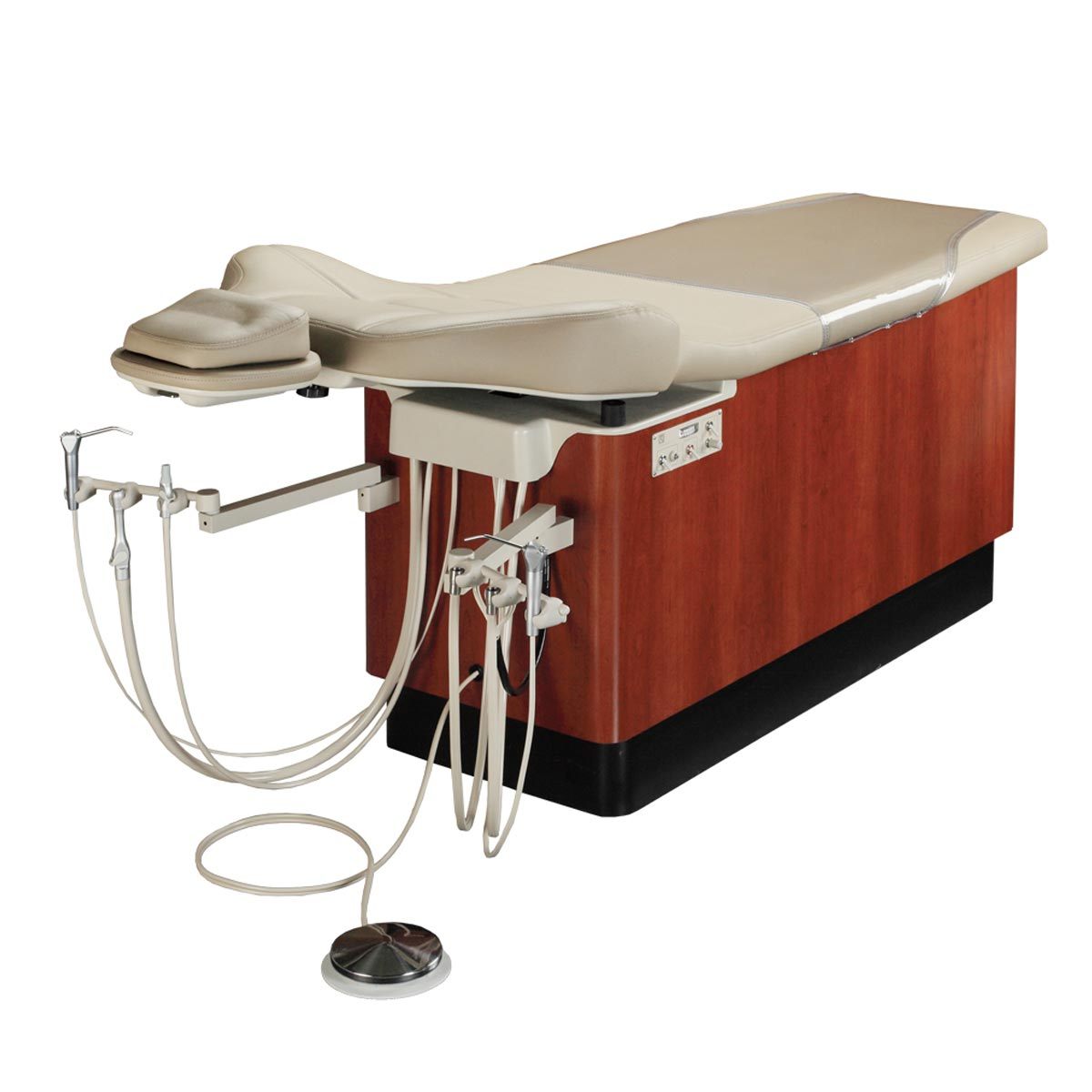

Instrumentation Package Includes Two (2) Handpiece Automatic Delivery System with:
- (2) handpiece hook-Up
- Saliva ejector
- HVE
- 3 Way syringe
- Solids collector
- Disc type foot control
- Flush system
- PSI indicator
Cabinet Base:
- Durable ¾” Plywood
- Maple dovetailed drawers with full extension, soft-closing glides
Optional:
- BT-281 Stainless Steel Instrument Tray (10" x 15"). Mounts 18" above the floor on bench, with pivot pin to rotate right and left under the head of the patient.
| Model # | Part # | Description |
|---|---|---|
| PB4000 | 100-4800 | Putty Trim, (2) HP Auto |
| PB4000 | 100-4800B | Black Trim, (2) HP Auto |
| PB4000CW | 100-4800CW | Putty Trim, (2) HP Auto, Clean Water System |
| PB4000CW | 100-4800CWB | Black Trim, (2) HP Auto, Clean Water System |
| PB4000L | 100-4802 | Doctor's Side, LEFT with Unit Control (2)HP AUTO - Assistant Side, RIGHT withDRWS and Utility Access Door |
| PB4000L | 100-4802CW | with Clean Water Option Added |
WARNING: This product can expose you to chemicals including cumene, nickel
compounds and wood dust, which are known to the state of California to cause cancer;
di(2-ethylhexyl)phthalate, which is known to the state of California to cause cancer,
developmental
toxicity and male reproductive toxicity; and lead and lead compounds, which are known to the
state
of California to cause cancer, developmental toxicity, male reproductive toxicity, and female
reproductive toxicity. For more information, go to www.P65Warnings.ca.gov.
Options
| Model # | Part # | Description |
|---|---|---|
| CWS | 20-5418 | Self Contained Water System |
| 3HP Auto | 20-5789 | Upgrade from Std (2) HP system |
| Breadboard | 65-9125 | In place of top DRW |
| SPECIFICATIONS & FEATURES | M300X | M3000FB | M3000LC | M3010FB | M3010LC | E530 | E535 | PB4000 | PB4001 | ||
| ● STANDARD FEATURE ●● OPTIONAL FEATURE | |||||||||||
| Weight Capacity (lbs) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 350 | 350 | 350 | 350 |
| Minimum Seat Height (At the highest point of seat frame) | 25.5" | 25.5" | 22" | 19.5" | 25.5" | 22" | 19.5" | 19" | 19" | 27.5" | 27.5" |
| Maximum Seat Height (At the highest point of seat frame) | 25.5" | 25.5" | 30" | 33" | 27.5" | 30" | 33" | 26" | 26" | 27.5" | 27.5" |
| Base Plate Width | 24.25" | 24.25" | 24.25" | 24.25" | 24.25" | 24.25" | 24.25" | 20" | 20" | 26" | 26" |
| Length | 70.5" | 70.5" | 70.5" | 71.5" | 63.5" | 63.5" | 66.75" | 58" | 58" | 76.5" | 76.5" |
| Power Requirements (Amps) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 8 | |||
| # of Motorized Functions | 1 | 1 | 2 | 2 | 1 | 2 | 2 | 1 | |||
| 220vAC Convertible | ● | ● | ● | ● | ● | ●● | ●● | ||||
| Steel Frame Construction | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Frame/Trim Colors (Putty or Black) | ● | ● | ● | ● | ● | ● | ● | ● | Black Only | ● | ● |
| Headrest - Non Articulating | ● | ● | ● | ● | ● | ● | ● | ●● | ●● | ●● | ●● |
| Headrest - Single Articulating | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ● | ● |
| Headrest - Dual Articulating | ● | ● | |||||||||
| Choice of Standard Headrests | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Arm Rests | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ● | ● | N/A | N/A |
| Programmable Foot Control | ● | ● | ● | ● | ● | ||||||
| Programmable Foot Control - Detachable | ●● | ●● | |||||||||
| Programmable Hand Control on Chair Back | ● | ● | |||||||||
| Auto Return to Home | ● | ● | ● | ● | ● | ● | ● | ||||
| Safety Stop Feature | ● | ● | ● | ● | ● | ● | ● | ||||
| 120vAC Electrical Outlet | ● | ● | ● | ● | ● | ● | ● | ●● | ●● | ||
| Base - Cantilever Style (14" Stroke) | ● | ● | |||||||||
| Base - Vertical Column (7.9" Stroke) | ● | ● | ● | ||||||||
| Base - Manual Pump (7" Stroke) | ● | ||||||||||
| Base - Electric Hydraulic (7.5" Stroke) | ● | ||||||||||
| Seat Swivel (360 of Travel) | ● | ● | |||||||||
| Seat Swivel (83 of Travel) | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ||||
| Upholstery - Boltaflex Vinyl /Standard Foam | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Upholstery - Ultraleather Pro™ | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ||
| Upholstery - Choice of Stitching Styles | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Upholstery - Detachable | ● | ● | ● | ● | ● | ● | ● | ||||
| Memory Foam | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ●● | ||
