The MAXI S4500 is the otolaryngology industry benchmark in full function ENT examination chairs. Available in either Boltaflex Vinyl or Ultraleather upholstery, the chair has three power functions – lift, recline and tilt – combined with manual lockable 360^ swivel base. The S4500 and its companion model, S4000 are constructed using extremely durable, cast aluminum and steel components machined to high tolerances and powered by electronically controlled low-voltage DC actuators capable of lifting 400 pounds. These design features assure durability, performance and optimal patient positioning for many years of service!
Standard Features

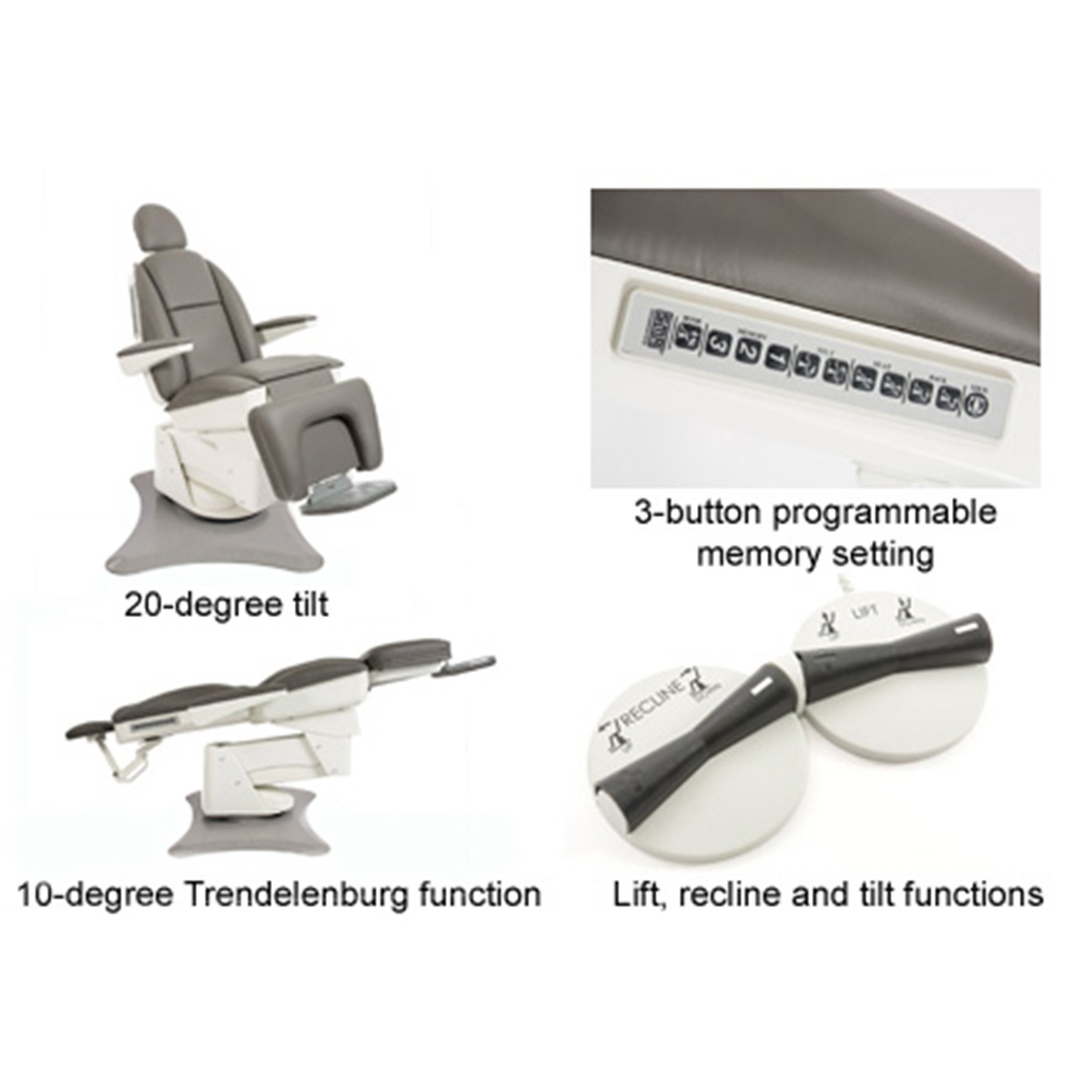

- Fully-powered recline, lift, and 20^ tilt
- Trendelenburg capability

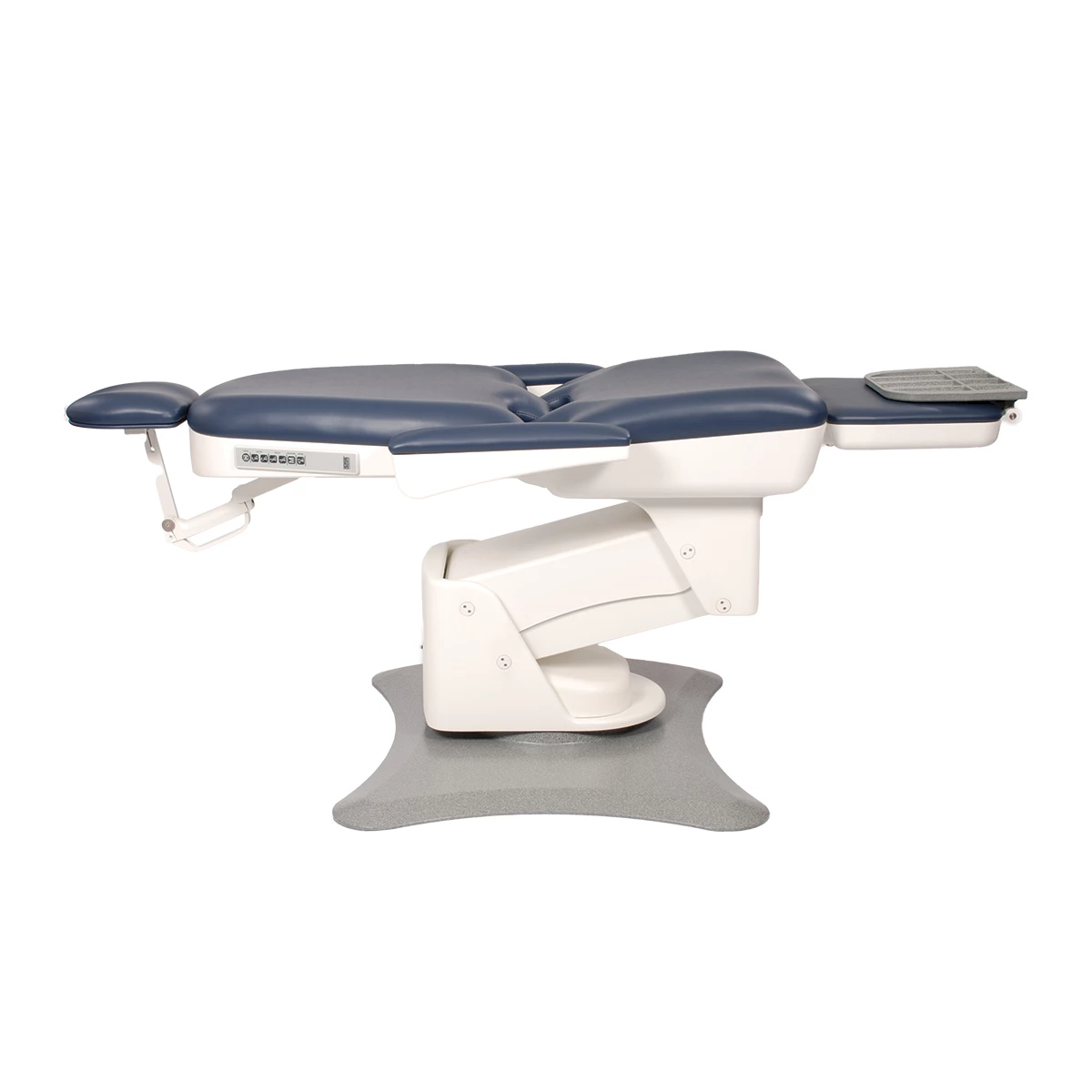

- Lay-flat design
- Dual membrane hand controls
- 3 programmable memory settings
- Auto Return Full
- Electronic Safety Lock Out
- BoltaflexTM Vinyl Upholstery
- Double Articulating Headrest
- Padded, Articulating Footrest
- Lay-flat armrests
Options
- Detachable Foot Control
- Upgrade to Ultraleather upholstery
Maxi 4500 Series Dimensions
| Maxi 4500 Series Dimensions | ||||||
|---|---|---|---|---|---|---|
| Base Footprint | Width Arms / No Arms | Overall Length | Rotation Diameter (fully extended) | Lift Height (Min - Max) | Rotation | |
| 26" 66 cm dia. | 30" / 25.5" 76 / 64 cm | 79" 201 cm | 79" 201 cm | 21" - 38" 56 - 99 cm | 350° | |
| Maxi 4500 Series Specifications | ||||||
| Backrest Movement | Tilt / Trendelenberg | Maximum Lift/Support | Electrical Requirements | Shipping / Appox. Weight | Seat Size | |
| 100° | 10° | 400 lbs. (tested to 1,600 Ibs). | 115VAC, 60Hz, 9Amps | 434 / 364 lbs. 197 / 165 kg | 25.5" x 18" 51 x 45 cm | |
SMR® Maxi 4500 Series Color Selection
Color samples shown may vary from actual color. Additional colors are available. Call 727.471.5072 for swatches. All products are subject to improvement changes without notice.
